If you are searching for a Rheem water heater 40 gallon, you are probably not just looking for a product description. You want to know which 40-gallon Rheem model fits your home, whether you should choose electric, gas, or heat pump technology, how much the unit may cost, and what you should check before replacing your existing water heater.
Is a Rheem 40-gallon water heater right for you?
A 40-gallon Rheem water heater can be a practical choice for many smaller-to-medium households, but tank capacity alone should not determine your choice. You also need to consider fuel type, first-hour rating, recovery rate, dimensions, available utilities, installation requirements, efficiency, warranty, and your actual hot-water usage.
Rheem currently offers 40-gallon options across standard electric, smart electric, gas, and heat-pump categories. Exact specifications vary considerably by model, so I would not buy a unit simply because the label says “40 gallon.” :contentReference[oaicite:0]{index=0}
What Is a Rheem 40-Gallon Water Heater?
A Rheem 40-gallon water heater is a tank-style residential water heater with a nominal storage capacity of 40 gallons. Rheem sells multiple products in this capacity, including conventional electric and natural-gas models as well as higher-efficiency heat-pump and smart electric options.
That distinction matters because two Rheem water heaters can both be called “40 gallon” while having very different:
- Fuel or energy source
- Physical dimensions
- First-hour rating
- Recovery rate
- Uniform Energy Factor (UEF)
- Warranty coverage
- Smart and leak-detection features
- Installation requirements
- Upfront purchase price
For example, Rheem’s Performance Standard Electric model XE40M06ST45U1 is a 40-gallon electric unit with a 0.93 UEF, a 6-year limited tank-and-parts warranty, and a listed first-hour rating range of 33–62 gallons depending on capacity/model. :contentReference[oaicite:1]{index=1}
By comparison, Rheem’s current Professional Prestige ProTerra plug-in heat-pump model PROPH40 T0 RH120-M is also a 40-gallon unit, but it has a 10-year limited tank-and-parts warranty, Wi-Fi, leak detection, and a listed UEF of 2.8. :contentReference[oaicite:2]{index=2}
How Many People Can a 40-Gallon Rheem Water Heater Serve?
A 40-gallon tank is commonly positioned for a household of around 2 to 4 people. For example, current Rheem 40-gallon electric and gas product listings describe that range. :contentReference[oaicite:3]{index=3}
However, I would treat “2 to 4 people” as a starting point rather than a guarantee.
Your actual hot-water demand depends on how your household uses water. Four people who take showers at different times may have a very different demand profile from two people who take back-to-back showers while the dishwasher and washing machine are running.
Important sizing tip
Do not judge a water heater only by its gallon number. First-hour rating (FHR), recovery rate, household usage, and peak demand can be just as important when deciding whether a 40-gallon tank will keep up.
Rheem 40-Gallon Water Heater Types
Before comparing individual model numbers, it helps to understand the main technologies you may encounter.
1. Rheem 40-Gallon Electric Water Heater
A standard electric model is often the most straightforward option when your home already has the appropriate electrical service and you are replacing an existing electric tank.
Rheem’s current Performance Standard Electric family includes 40-gallon models such as the XE40M06ST45U1. Rheem lists a 0.93 UEF for that model, dual copper heating elements, a temperature-and-pressure relief valve, and up to 21 gallons-per-hour recovery at a 90°F rise depending on model. :contentReference[oaicite:4]{index=4}
Rheem also offers more advanced electric models. The Professional Classic Plus with LeakSense, for example, adds built-in leak detection, Wi-Fi connectivity, smartphone control, a hot-water availability indicator, and an 8-year limited tank-and-parts warranty on the PRO+E40 M2 RH93 CL model. :contentReference[oaicite:5]{index=5}
Best fit: A homeowner replacing an existing electric tank who wants a conventional installation or wants additional smart and leak-detection features.
2. Rheem 40-Gallon Gas Water Heater
If your home already uses natural gas for water heating, a gas tank can be a logical replacement category to investigate.
One current Rheem Performance Atmospheric 40-gallon natural-gas model, XG40T06EC36U1, has a 6-year limited tank-and-parts warranty, a listed UEF range of .58–.66 for the family, and a first-hour-rating range of 55–97 gallons depending on model. Rheem also lists recovery of up to 51 gallons per hour at a 90°F rise depending on model. :contentReference[oaicite:6]{index=6}
Gas replacement is not simply a matter of buying a tank with the same gallon capacity. Venting, gas connections, combustion requirements, local code requirements, and the existing installation all need to be considered.
Best fit: Homes already configured for natural-gas water heating where a compatible gas replacement makes sense.
3. Rheem 40-Gallon Heat Pump Water Heater
A heat-pump water heater works differently from a conventional electric resistance tank. Instead of relying only on traditional electric heating elements, it uses a heat-pump system to move heat into the water.
Rheem’s ProTerra 40-gallon models include features such as Wi-Fi, leak detection, Energy Star certification, and substantially higher UEF ratings than standard electric models. For example, Rheem lists a 2.8 UEF for the PROPH40 T0 RH120-M configuration. :contentReference[oaicite:7]{index=7}
Rheem also offers higher-efficiency ProTerra configurations with different dimensions, connections, and UEF ratings, so you should compare the exact model rather than assuming every 40-gallon heat-pump unit is identical. :contentReference[oaicite:8]{index=8}
Best fit: Homeowners interested in higher-efficiency electric water heating and who have an installation space and electrical setup suitable for the selected heat-pump model.

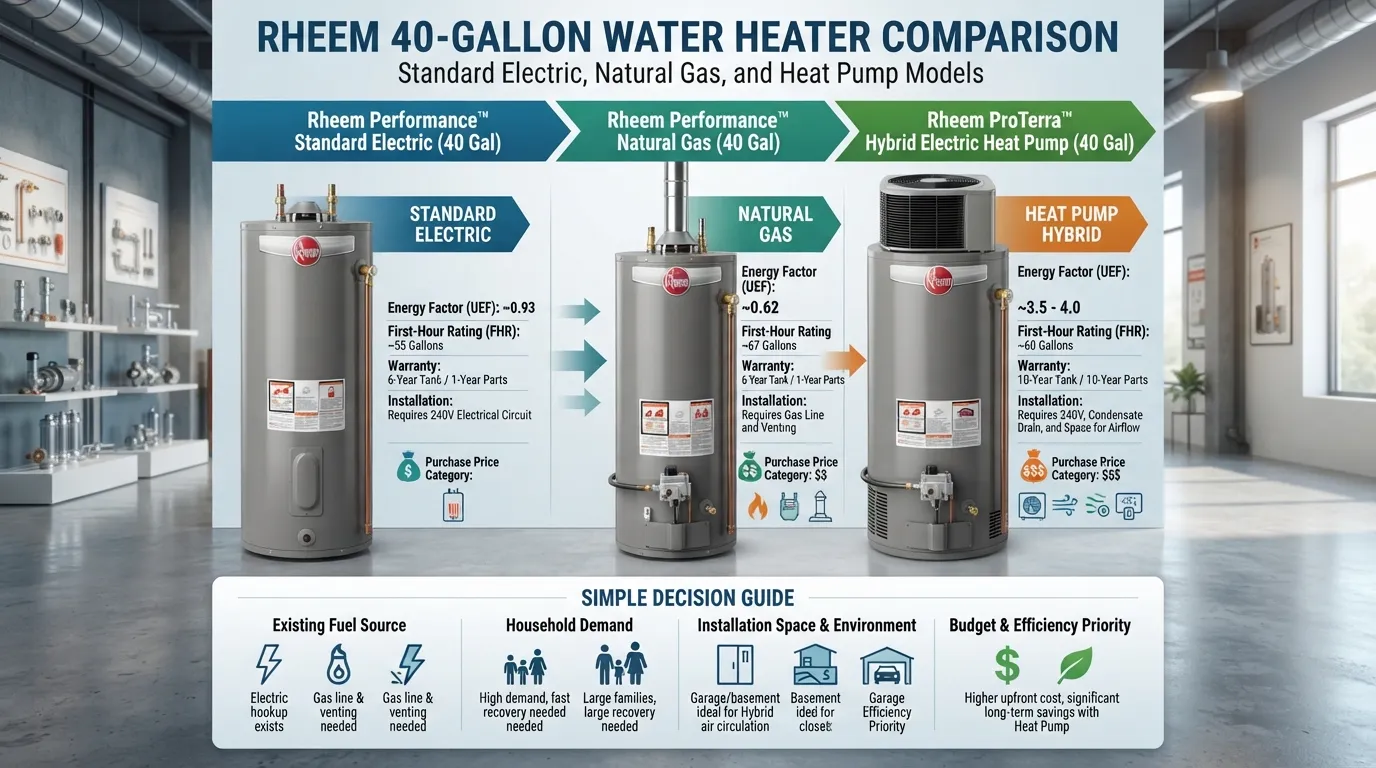

Rheem 40-Gallon Electric vs. Gas vs. Heat Pump
There is no universal winner. The best technology depends on your existing utilities, installation conditions, household demand, budget, and long-term priorities.
Rheem 40-Gallon Water Heater Specs: What Actually Matters?
When you compare a 40 gal Rheem water heater, these are the specifications I would pay the most attention to.
Tank Capacity
Nominal capacity tells you the approximate storage category, but it does not tell the whole story about how much hot water the unit can deliver during a busy period.
First-Hour Rating (FHR)
FHR estimates how much hot water a water heater can supply during the first hour under specified testing conditions. It combines stored hot water with the heater’s ability to recover during that period.
This is one reason two 40-gallon models can perform differently. Rheem’s current standard electric and gas product specifications show different FHR ranges depending on the model and fuel type. :contentReference[oaicite:9]{index=9}
Recovery Rate
Recovery tells you how quickly the heater can heat incoming cold water under a specified temperature-rise condition.
For example, Rheem lists up to 21 GPH at a 90°F rise for certain standard electric models and up to 51 GPH at a 90°F rise for certain Performance Atmospheric gas models. These are model-specific figures, not universal numbers for every Rheem 40-gallon heater. :contentReference[oaicite:10]{index=10}
UEF
UEF stands for Uniform Energy Factor. It is an efficiency metric used to compare water-heating performance under standardized conditions.
A higher UEF generally indicates greater efficiency, but you should still consider purchase price, installation requirements, household usage, local energy costs, and the exact model before making a decision.
Dimensions
This is one of the most overlooked buying checks.
A 40-gallon water heater is not automatically the same physical size as another 40-gallon water heater. Rheem’s current products include tall, medium, short, and heat-pump configurations with different dimensions. :contentReference[oaicite:11]{index=11}
Before ordering a replacement, measure:
- Available height
- Available width and diameter
- Available depth
- Water connection locations
- Electrical or gas connection locations
- Required service and safety clearances
- Doorway and access route for bringing the new tank into place
Rheem 40-Gallon Water Heater Price: What Should You Budget?
The answer depends heavily on the exact model, fuel type, retailer, location, installation conditions, and any additional work required.
For example, at the time of this research, The Home Depot listed the Rheem Performance 40-gallon tall natural-gas model XG40T06EC36U1 at $609. Retail pricing can change, so treat that figure as a current example rather than a permanent price. :contentReference[oaicite:12]{index=12}
More importantly, the water heater price is not necessarily the total replacement cost.
Think in three costs
- Unit cost: The price of the water heater itself.
- Installation cost: Labor and standard installation work.
- Replacement project cost: The unit, labor, disposal, required materials, code-related work, permits where applicable, and any necessary upgrades or modifications.
That is why comparing two water heaters based only on the sticker price can give you a misleading picture of the final cost.
Rheem 40 Gallon vs. 50 Gallon: Which Size Should You Choose?
If you are already considering a 40-gallon Rheem, one of the most useful comparisons is whether you should move up to a 50-gallon tank.
I would ask these questions before choosing:
- How many people live in the home?
- How many showers happen close together?
- Does anyone regularly take long showers?
- Do you fill a bathtub frequently?
- Does the washing machine run during peak hot-water use?
- Does the dishwasher use hot water at the same time?
- What is the FHR of the exact 40-gallon model?
- What is the FHR of the 50-gallon model you are comparing?
- Does the larger tank physically fit?
- Will the larger model require different installation work?
The key point
Do not automatically upgrade from 40 to 50 gallons just because “bigger is better.” Compare the household demand and first-hour performance of the actual models you are considering.
Which Rheem 40-Gallon Water Heater Should You Choose?
A simple decision guide
If you are replacing an existing electric tank:
Start by comparing compatible standard electric and smart electric 40-gallon models. Verify the exact electrical requirements, dimensions, FHR, efficiency and warranty before ordering.
If you already have natural gas:
Compare compatible Rheem gas models and have the gas, venting and installation requirements checked before purchasing.
If energy efficiency is your priority:
Look at Rheem’s heat-pump options and compare their higher efficiency against purchase price, available space, electrical requirements and installation conditions.
If leak detection and remote monitoring matter to you:
Rheem offers 40-gallon smart electric and heat-pump models with features such as leak detection and Wi-Fi connectivity. :contentReference[oaicite:13]{index=13}
If space is limited:
Do not choose by gallons alone. Compare the exact height, width, depth and connection configuration of the model you want with the space available in your home.
Rheem 40-Gallon Model Examples Worth Comparing
Rheem’s 40-gallon lineup is broader than a single product. The following examples show why the exact model number matters.
These are examples, not a recommendation that one model is automatically best. Rheem’s specifications show that features, efficiency, dimensions and warranty can vary substantially across 40-gallon models. :contentReference[oaicite:14]{index=14}
Why the Rheem Model Number Matters
If you search for “Rheem 40 gallon electric hot water heater,” you may see several model numbers that look almost interchangeable.
They are not necessarily interchangeable.
A model number can identify a particular product configuration, and the exact configuration determines specifications such as height, efficiency, capacity, fuel, features and warranty.
For example, Rheem lists the XE40M06ST45U1 as a 40-gallon electric model with a 53.75-inch height and 21.63-inch depth, while other 40-gallon Rheem electric configurations have different dimensions. :contentReference[oaicite:15]{index=15}
Before buying, always match the complete model number—not just “Rheem 40 gallon.”
What to Check Before Replacing a Rheem 40-Gallon Water Heater
If you are replacing an existing unit, I recommend checking these items before ordering anything.
- Fuel type: Is the existing heater electric, natural gas, propane, or another configuration?
- Tank dimensions: Measure the existing installation area.
- Connection locations: Check where the hot and cold water connections are positioned.
- Electrical requirements: For an electric model, verify the required voltage and electrical setup for the exact model.
- Gas and venting: For gas models, verify compatibility rather than assuming the existing installation can accept any new heater.
- Household demand: Consider peak hot-water usage rather than household size alone.
- FHR: Compare the first-hour rating of the replacement model.
- Recovery: Check the model’s recovery performance.
- Warranty: Compare tank-and-parts warranty terms and read the manufacturer’s written warranty.
- Local requirements: Check applicable local code and permit requirements.
- Access: Make sure the new tank can physically be moved into the installation area.
- Professional installation: If the fuel type, connections, venting, electrical service, or installation configuration is changing, have the installation evaluated by a qualified professional.
Can I Replace My Old 40-Gallon Water Heater With Another 40-Gallon Rheem?
Often, a same-capacity replacement can be a straightforward starting point, but you should not assume that every 40-gallon Rheem model is a drop-in replacement for every existing 40-gallon water heater.
The new unit may have different dimensions, connection locations, electrical requirements, venting requirements, efficiency characteristics, or installation requirements.
If you are replacing an aging unit, it is worth having the existing installation evaluated before ordering the replacement. That can help prevent the common problem of buying a tank that looks right online but does not fit the actual installation.
If your project is specifically a water-heater replacement, you can also review our water heater replacement service for the next step.
Rheem 40-Gallon Water Heater Maintenance
Maintenance requirements depend on the exact Rheem model and installation, so the manufacturer’s use-and-care documentation should always take priority.
For a tank water heater, useful maintenance considerations can include:
- Checking for signs of leakage
- Watching for unusual changes in hot-water performance
- Checking the area around the tank for corrosion or water damage
- Following the manufacturer’s maintenance instructions
- Having safety components and installation conditions checked when appropriate
- Addressing unusual noises, temperature problems, or repeated loss of hot water instead of ignoring them
Some current Rheem models add features designed to make monitoring easier. For example, the Professional Classic Plus with LeakSense includes leak detection and EcoNet Wi-Fi features, while certain ProTerra models also include leak detection and Wi-Fi. :contentReference[oaicite:16]{index=16}
What Does “40 Gallon” Really Tell You?
It tells you the nominal storage category. It does not tell you whether the heater is tall, medium, short, electric, gas, heat pump, smart, high-efficiency, or physically compatible with your home.
That is why I recommend treating the search term “Rheem water heater 40 gallon” as the beginning of the buying process—not the final specification.
The 40-Gallon Buying Formula
Choose the model based on:
Household demand + fuel type + FHR + recovery + dimensions + installation requirements + efficiency + warranty + budget.
Frequently Asked Questions About Rheem 40-Gallon Water Heaters
Is a Rheem 40-gallon water heater good for a family of four?
It can be suitable for many four-person households, and Rheem and retailers commonly position certain 40-gallon models for households of 2–4 people. However, actual suitability depends on peak hot-water demand, the model’s first-hour rating and recovery performance, and how your household uses hot water. :contentReference[oaicite:17]{index=17}
What is the difference between a Rheem 40-gallon electric and gas water heater?
The primary difference is the energy source and the installation requirements. Electric models use electrical heating elements, while natural-gas models use a gas burner and require a compatible gas and venting setup. Their efficiency, recovery characteristics, dimensions and installation requirements can also differ by model. :contentReference[oaicite:18]{index=18}
Is a 40-gallon Rheem water heater enough for two people?
It may be, particularly when hot-water demand is moderate. But household size is only one part of the decision. Your shower habits, bathtub use, appliances, peak demand and the selected model’s FHR all matter.
What is the difference between a 40-gallon and 50-gallon Rheem water heater?
The nominal storage capacity is different, but capacity is not the only performance factor. Compare the exact models’ FHR, recovery rate, dimensions, efficiency, warranty and installation requirements before deciding.
How much does a Rheem 40-gallon water heater cost?
Prices vary by model, fuel type, retailer and location. As one current retail example, The Home Depot listed the Rheem Performance XG40T06EC36U1 40-gallon natural-gas model at $609 when this article was researched. That is the product price only and can change over time; installation and other replacement costs are separate. :contentReference[oaicite:19]{index=19}
What size Rheem water heater should I buy?
Start with household demand, then compare the first-hour rating and recovery performance of the models you are considering. Do not choose based on the gallon number alone.
Do Rheem 40-gallon water heaters come in smart models?
Yes. Rheem currently offers 40-gallon smart electric and heat-pump models with features that can include Wi-Fi connectivity and leak detection. Exact features depend on the model. :contentReference[oaicite:20]{index=20}
Do all Rheem 40-gallon water heaters have the same dimensions?
No. Rheem’s 40-gallon products can have different heights, widths and depths depending on the model and configuration. Always check the exact model specifications before purchasing. :contentReference[oaicite:21]{index=21}
Should I choose a standard electric or heat-pump Rheem water heater?
That depends on your priorities and installation conditions. A standard electric unit may be the simpler choice for a compatible existing installation, while a heat-pump model can offer substantially higher efficiency. Compare the exact model’s efficiency, dimensions, electrical requirements, installation needs and purchase cost rather than assuming one technology is universally better. :contentReference[oaicite:22]{index=22}
Related Resources
If you are comparing products before making a purchase, these manufacturer and retailer resources can help you verify the exact specifications and current product availability:
- Rheem tank water heater product lineup
- Rheem Performance Standard Electric 40-gallon model specifications
- Rheem Professional Classic Plus 40-gallon smart electric model
- Rheem ProTerra 40-gallon heat-pump model
- Current Home Depot Rheem Performance 40-gallon gas model listing
Product specifications, availability and retail pricing can change, so verify the exact model number and current manufacturer documentation before purchasing.
Need Help Choosing or Replacing a Rheem 40-Gallon Water Heater?
Not sure which 40-gallon Rheem model fits your home?
The right choice depends on your existing system, available space, household demand, fuel type and the specifications of the replacement model. If you are planning a replacement or need help evaluating the installation, you can learn about our water heater replacement service or explore our plumbing services.
For direct assistance, you can contact our plumbing team to discuss your water-heater needs.
Choosing a Rheem 40-gallon water heater is ultimately less about finding the one product with “40 gallon” in its name and more about matching the right technology, performance, dimensions and installation requirements to your home.
If you compare those factors before you buy, you are much more likely to end up with a water heater that actually fits your household and your existing installation.
